APPLICATIONS
Restaurants, cafés, boutique hotels, craft breweries, bakeries, confectioneries, car washes, dental and medical clinics, greenhouses, hydroponics
A stable company with extensive experience in the water industry.
We develop high-quality products at competitive prices.
Delivering advanced solutions backed by knowledge, innovation, and industry expertise.
PHYSICAL PARAMETERS:

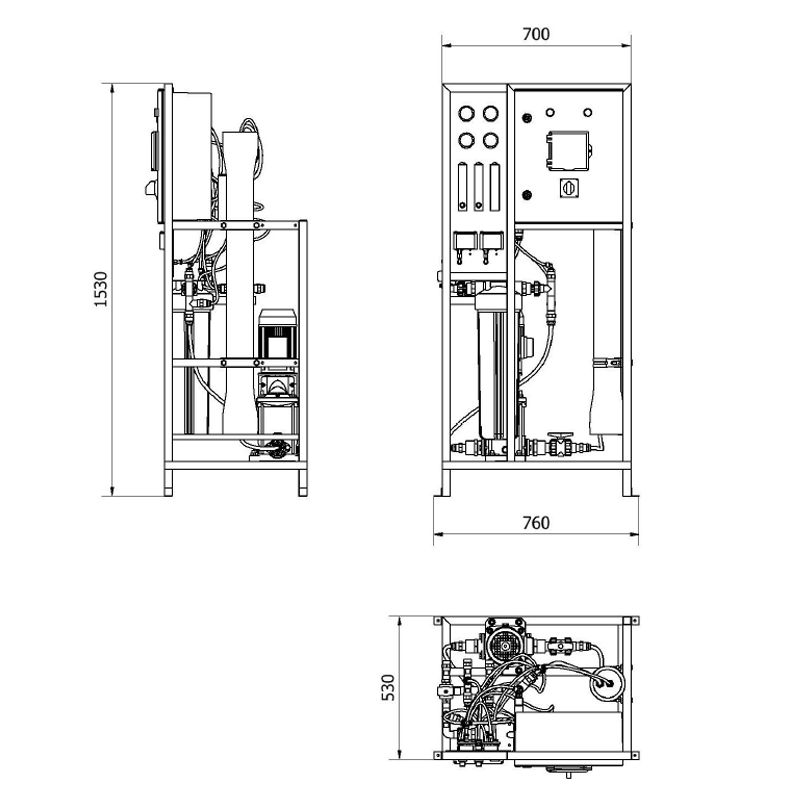

Approximate dimensions (bare) 0.8 ×0.6 ×1.5 m
Approximate dimensions (crated) 0.9 ×0.7×1.9 m
(Width ×Depth ×Height, ±5%)
Approximate weight (bare) 60kg
Approximate weight (crated) 85kg
Maximum Power Consumption 1 130 W
EQUIPMENT
• EBARA high pressure pump EVMS5 4N5 1 pcs
• 4040-1 membrane housing 1 pcs
• BB20 sediment prefilter 1 pcs
• Motorized valves 1 pcs
• Danfoss pressure switches 2 pcs
• Electrical panel with PLC controller 1 set
• ABB conductivity controller 1 set (pH option)
• AISI 304 Stainless steel frame 1 set
• Grundfos dosing pump 1 set (option)
CONNECTION PORT SIZES:
Inlet water G ½″
Permeate G ½″
Concentrate G ½″
Antiscalant dosing port G ½″(option)
