Reverse osmosis system 6 m3/h

APPLICATIONS

Process water supply, rinse water, boiler feedwater treatment, heating and cooling circuits, agriculture, desalination, food and beverage, wastewater recovery, utility water treatment

The YWT Reverse Osmosis System 6 m³/h is an industrial reverse osmosis system engineered for reliable and efficient water treatment. Built with industrial grade components and automated process control, it provides consistent treated water production for manufacturing, process water, boiler feedwater, cooling systems and other demanding industrial applications.

Download PDF

Reliable Company

A stable company with extensive experience in the water industry.

High-Quality Products

We develop high-quality products at competitive prices.

Professional Expertise

Delivering advanced solutions backed by knowledge, innovation, and industry expertise.

Parameters

PHYSICAL PARAMETERS

Approximate dimensions (bare): 2.95 × 0.95 × 1.90 m
Approximate dimensions (crated): 3.10 × 1.20 × 2.0 m
Dimensions: Width × Depth × Height, ±5%
Approximate weight (bare): 350 kg
Approximate weight (crated): 470 kg

CONNECTION PORT SIZES

Influent water: G 1½″
Permeate: G 1″
Concentrate: G 1½″
CIP inlet: G 1½″
CIP return: G 1½″
CIP permeate: G ½″
Antiscalant dosing port: G ½″

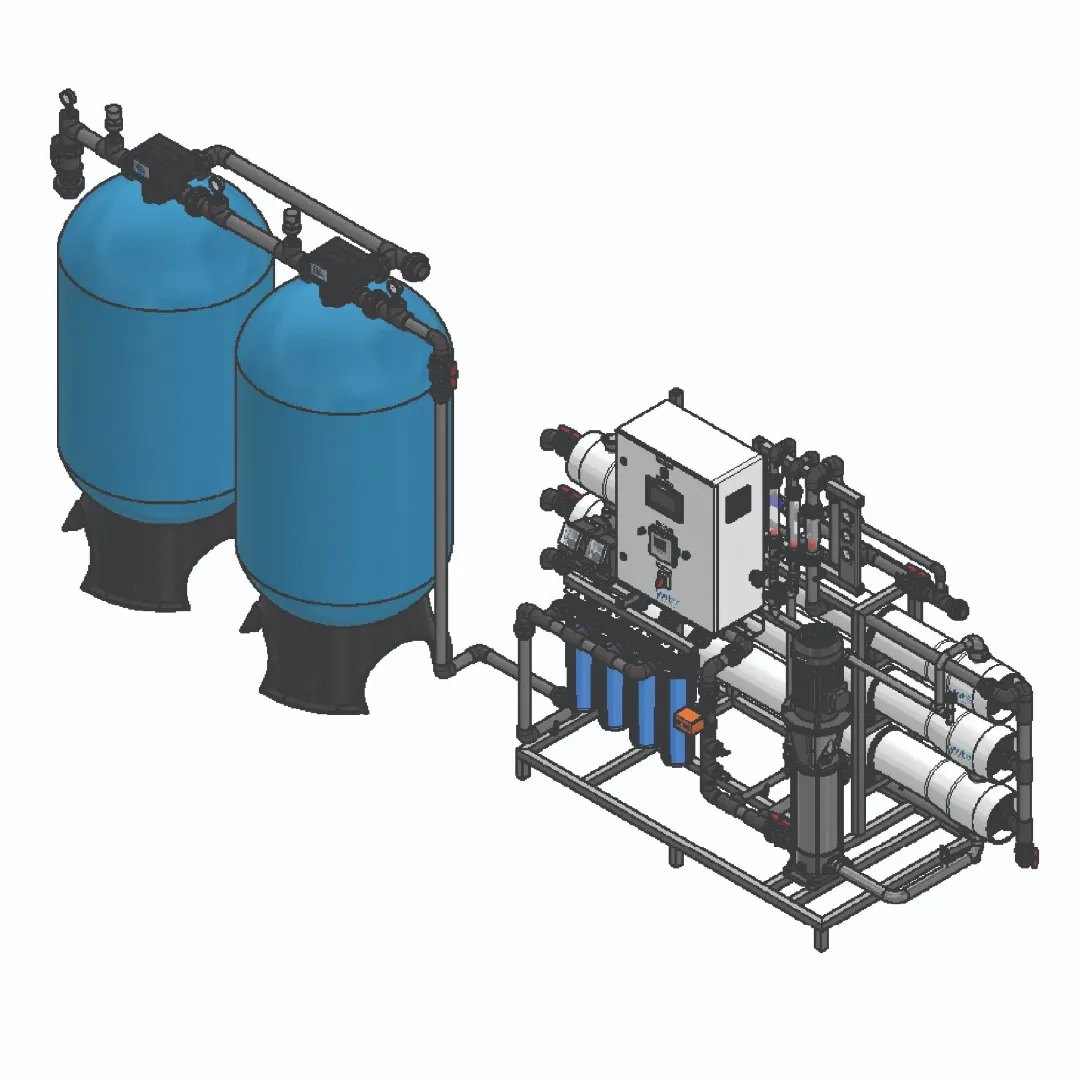

YWT Reverse Osmosis System 6 m³/h is an industrial reverse osmosis system designed for continuous production of treated water in professional and industrial water treatment applications. With a nominal production capacity of 6 m³/h, the system provides a practical solution for facilities requiring a dependable supply of high quality process water for manufacturing, boiler feed water treatment, heating and cooling circuits, agriculture, food and beverage production, utility water treatment and water recovery applications. The system incorporates dedicated connections for influent water, treated permeate and concentrate discharge, providing the principal process interfaces required for industrial RO operation. Separate CIP inlet, return and permeate connections support professional membrane cleaning and scheduled maintenance procedures, while the dedicated antiscalant dosing port allows chemical dosing to be integrated into the water treatment process. With its industrial footprint and clearly defined process connections, the 6 m³/h RO system can be efficiently integrated into new or existing water treatment infrastructure. As part of YWT’s range of industrial reverse osmosis systems, this unit is engineered to provide reliable membrane filtration, consistent treated water production and dependable performance for demanding industrial water treatment processes.

System Components

EQUIPMENT

Ebara high pressure pump: 1 pc
8080 membrane housing: 3 pcs
BB20 sediment prefilter: 4 pcs
Motorized valve: 1 pc
Balancing valves for concentrate reject and concentrate recycle: 2 pcs
Electrical panel with PLC controller: 1 set
ABB conductivity controller: 1 set, pH option available
AISI 316 stainless steel high pressure line: 1 set
AISI 304 stainless steel frame: 1 set
Grundfos dosing pump: 1 set, option for 2 sets



YWT Reverse Osmosis System 6 m³/h is built with industrial grade components selected for reliable and continuous operation in demanding industrial water treatment applications. An Ebara high pressure pump provides the operating pressure required for the reverse osmosis membrane separation process, while three 8080 membrane housings form the core of the RO treatment stage. Four BB20 sediment prefilters support feed water pretreatment, and the Grundfos dosing pump enables controlled antiscalant dosing to help protect the membranes and maintain stable system performance. Automated operation is managed through an electrical panel with PLC control, supported by ABB conductivity monitoring for continuous supervision of treated water quality. Two balancing valves provide control of concentrate reject and concentrate recycle flows, supporting effective management of the industrial RO process. The high pressure process line is manufactured from AISI 316 stainless steel, while the complete system is assembled on a durable AISI 304 stainless steel frame. Together, these components provide a professional industrial reverse osmosis system engineered for dependable process control, consistent permeate production and efficient operation across manufacturing, process water, boiler feedwater, cooling, food and beverage, agriculture and other industrial water treatment applications.

Source Water Requirements

SOURCE WATER CONDITIONS

Water source: Pre treated freshwater, municipal water, brackish water or process water according to system design
Pretreatment: Required according to source water quality
Suspended solids: Must be controlled before the RO membrane stage
Turbidity: Should be minimized through appropriate pretreatment
Scaling potential: Must be evaluated and controlled
Antiscalant dosing: Required according to feed water chemistry and operating conditions
Feed water analysis: Recommended before installation and commissioning
Free chlorine and oxidants: Must remain within the limits specified for the installed RO membranes
Biological contamination: Additional pretreatment may be required depending on source water conditions
Chemical compatibility: Feed water must remain within the operating limits of the membranes and system components



Source water quality has a direct influence on the performance, efficiency and operating life of the YWT Reverse Osmosis System 6 m³/h. Before feed water enters the industrial reverse osmosis system, its physical and chemical characteristics should be evaluated to determine the appropriate pretreatment, chemical dosing and operating conditions. Parameters such as dissolved salts, hardness, suspended solids, turbidity, scaling potential, organic matter, biological activity and oxidizing agents can affect membrane fouling, scaling, operating pressure, salt rejection and final permeate quality. Effective pretreatment and correct antiscalant dosing help protect the RO membranes, high pressure equipment and other system components while supporting stable and efficient treated water production. A professional source water analysis is therefore recommended before commissioning the system so that the pretreatment process can be configured for the actual feed water conditions and required product water quality. Maintaining suitable source water conditions is essential for reliable industrial reverse osmosis, consistent process water production and long term performance in demanding industrial water treatment applications.

Service and Maintenance

ROUTINE SERVICE REQUIREMENTS



Sediment prefilters:

Inspect regularly and replace when differential pressure increases or filter condition indicates reduced flow or performance.



RO membranes:

Monitor permeate flow, conductivity, salt rejection and operating pressure. Clean the membranes when normalized performance declines and replace them when cleaning can no longer restore the required water quality or production capacity.



High pressure pump:

Inspect periodically for leakage, abnormal noise, vibration and changes in operating pressure. Service according to the pump manufacturer’s maintenance requirements.



Antiscalant dosing system:

Check chemical levels, dosing rate, tubing and injection points regularly to maintain accurate and continuous dosing.



Conductivity monitoring:

Check conductivity readings routinely to verify permeate quality and identify changes in reverse osmosis performance.



Motorized and balancing valves:

Inspect for correct operation, leakage and stable control of concentrate reject and concentrate recycle flows.



CIP membrane cleaning:

Perform cleaning when operating data indicates membrane fouling, scaling or a significant decline in normalized permeate flow or salt rejection.



Stainless steel piping and connections:

Inspect periodically for leakage, corrosion, loose fittings and signs of mechanical wear.



PLC and electrical panel:

Check system alarms, operating parameters, control functions, sensors and electrical connections as part of scheduled preventive maintenance.



Regular servicing and preventive maintenance are essential for maintaining the efficiency, reliability and operating life of the YWT Reverse Osmosis System 6 m³/h. An industrial reverse osmosis system depends on stable operation of the RO membranes, high pressure pump, sediment prefilters, chemical dosing equipment, valves, instrumentation and automated controls. Routine monitoring of operating pressure, permeate flow, conductivity and salt rejection helps identify membrane fouling, scaling, filter blockage or changes in feed water conditions before they develop into significant performance problems. Correct antiscalant dosing and timely CIP membrane cleaning help protect the membrane elements and maintain consistent permeate production and water quality. Regular inspection of the Ebara high pressure pump, process valves, AISI 316 stainless steel high pressure piping and PLC controlled electrical system also supports safe and dependable operation. A structured preventive maintenance program helps the industrial RO system maintain efficient water treatment performance, minimize unnecessary downtime and provide reliable long term operation across process water, boiler feedwater, cooling, manufacturing and other industrial water treatment applications.

Technical information

EQUIPMENT

  • Ebara high pressure pump 1 pcs
  •  8080 membrane housing 3 pcs
  • BB20 sediment prefilter 4 pcs
  • Motorized valves 1 pcs
  • Balancing valves 2 pcs (concentrate reject, concentrate recycle)
  • Electrical panel with PLC controller 1 set
  • ABB conductivity controller 1 set (pH option)
  • AISI 316 Stainless-steel high-pressure line 1 set
  • AISI 304 Stainless steel frame 1 set
  • Grundfos dosing pump 1 set (option for 2 sets)

CONNECTION PORT SIZES:

  • Infl uent water G 1½″
  • Permeate G 1″
  • Concentrate G 1½″
  • CIP inlet G 1½″
  • CIP return G 1½″
  • CIP permeate G ½″
  • Antiscalant dosing port G ½″

PHYSICAL PARAMETERS:

  • Approximate dimensions 2.95 × 0.95 × 1.90 m
  • Approximate dimensions (crated) 3.10 × 1.20 × 2.0 m (Width × Depth × Height, ±5%)
  • Approximate weight (bare) 350 kg
  • Approximate weight (crated) 470 kg
