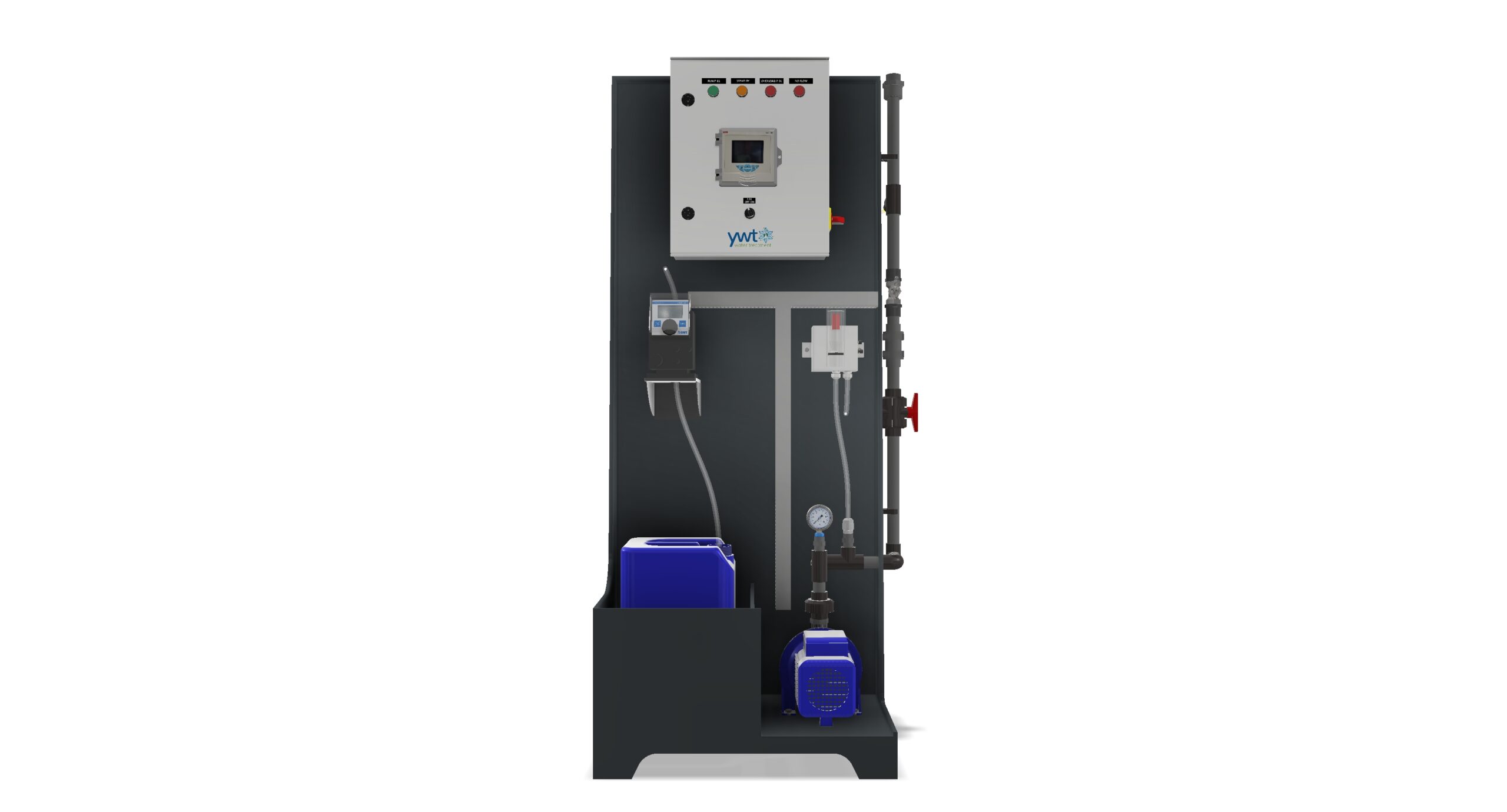

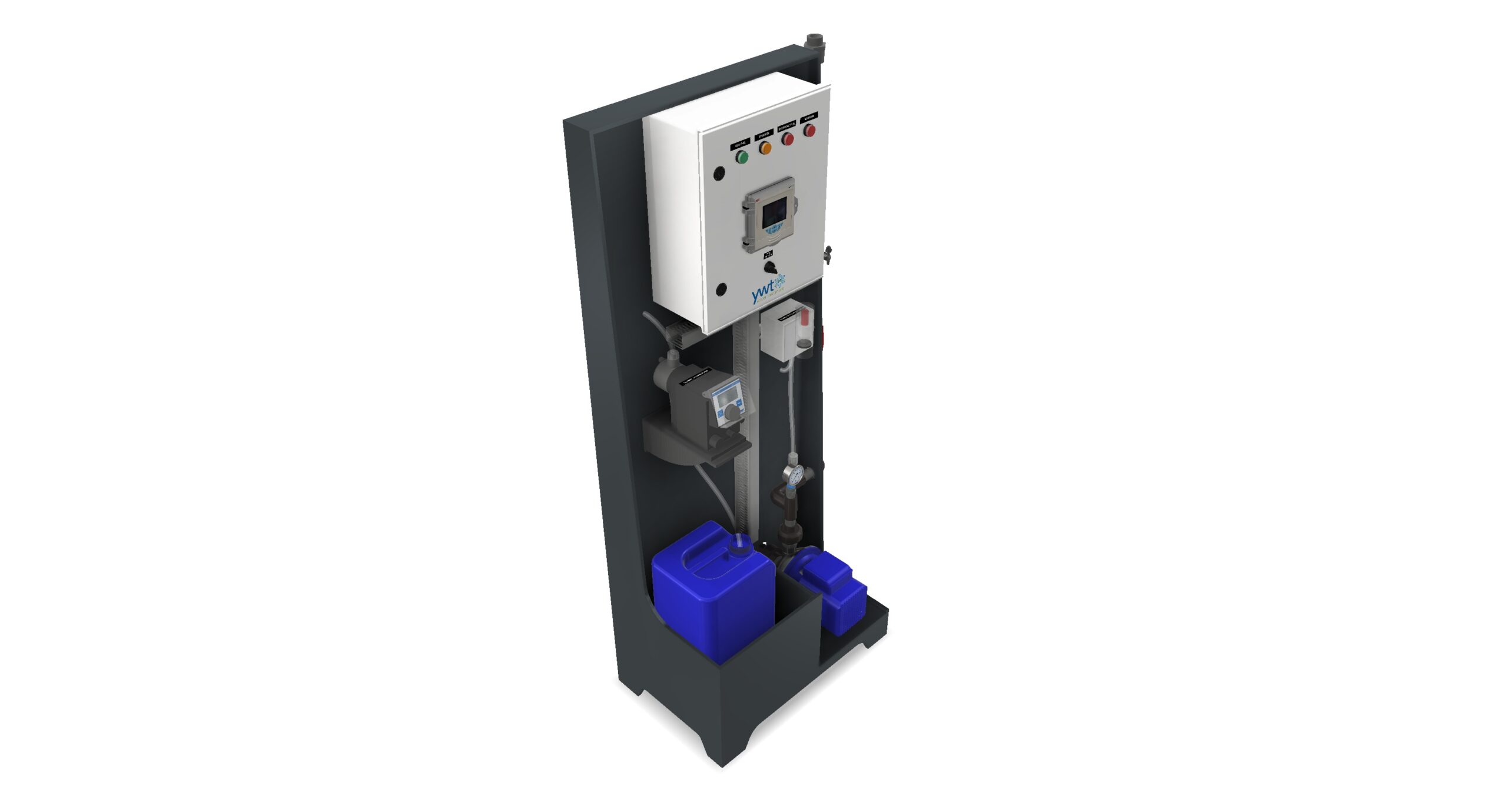

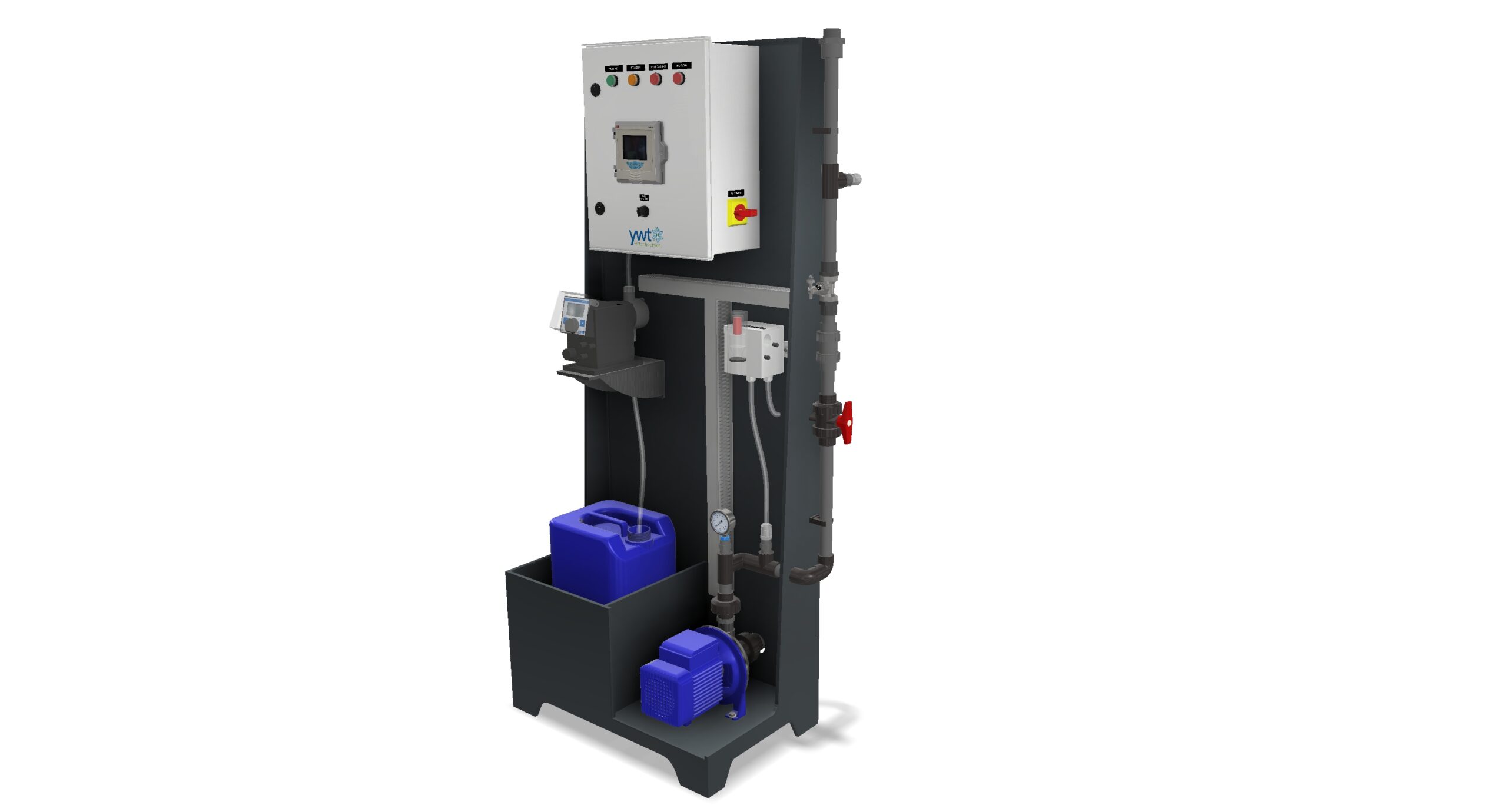

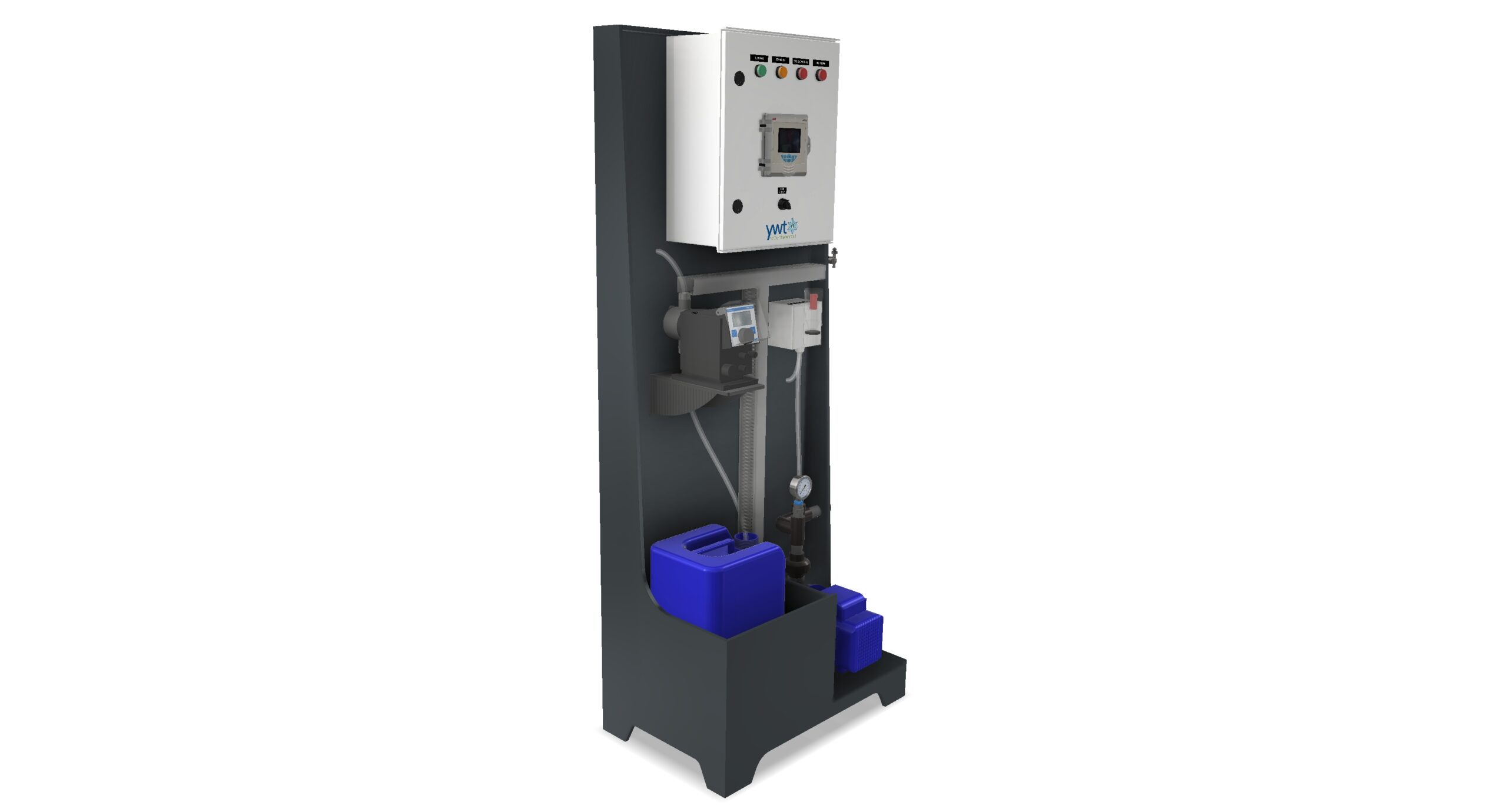

Chlorination Model G1 provides precise and reliable chlorine control for efficient water treatment and disinfection. Designed for simplicity and performance, this system helps ensure consistent water quality with dependable operation and long-lasting reliability.
A stable company with extensive experience in the water industry.
We develop high-quality products at competitive prices.
Delivering advanced solutions backed by knowledge, innovation, and industry expertise.
EQUIPMENT
• Pedrollohigh flow pumpCP150 1 pcs
• Grundfos digital diaphragm dosing pump 1 set
• Water quality analyzer cell De Nora KC4 1 pcs
• ABB conductivity controller 1 set (pH option)
• Paddle flow switch 1 pcs
• Dosing skid with integrated spill containment bund, chemical-resistant polypropylene skid base 1 pcs
• Chemical dosing tank 25L 1 set
PHYSICAL PARAMETERS:
Approximate dimensions (bare) 0.72 ×1.77 ×0.45 m
Approximate dimensions (crated) 1.0 ×2.1 ×0.6 m
(Width ×Depth ×Height, ±5%)
Approximate weight (bare) 75 kg
Approximate weight (crated) 165 kg
Maximum Power Consumption 0.9 kW
CONNECTION PORT SIZES:
Inlet water G 1″
Analyzer port G ½″
Dosing port G ½″
Outlet water 1″
