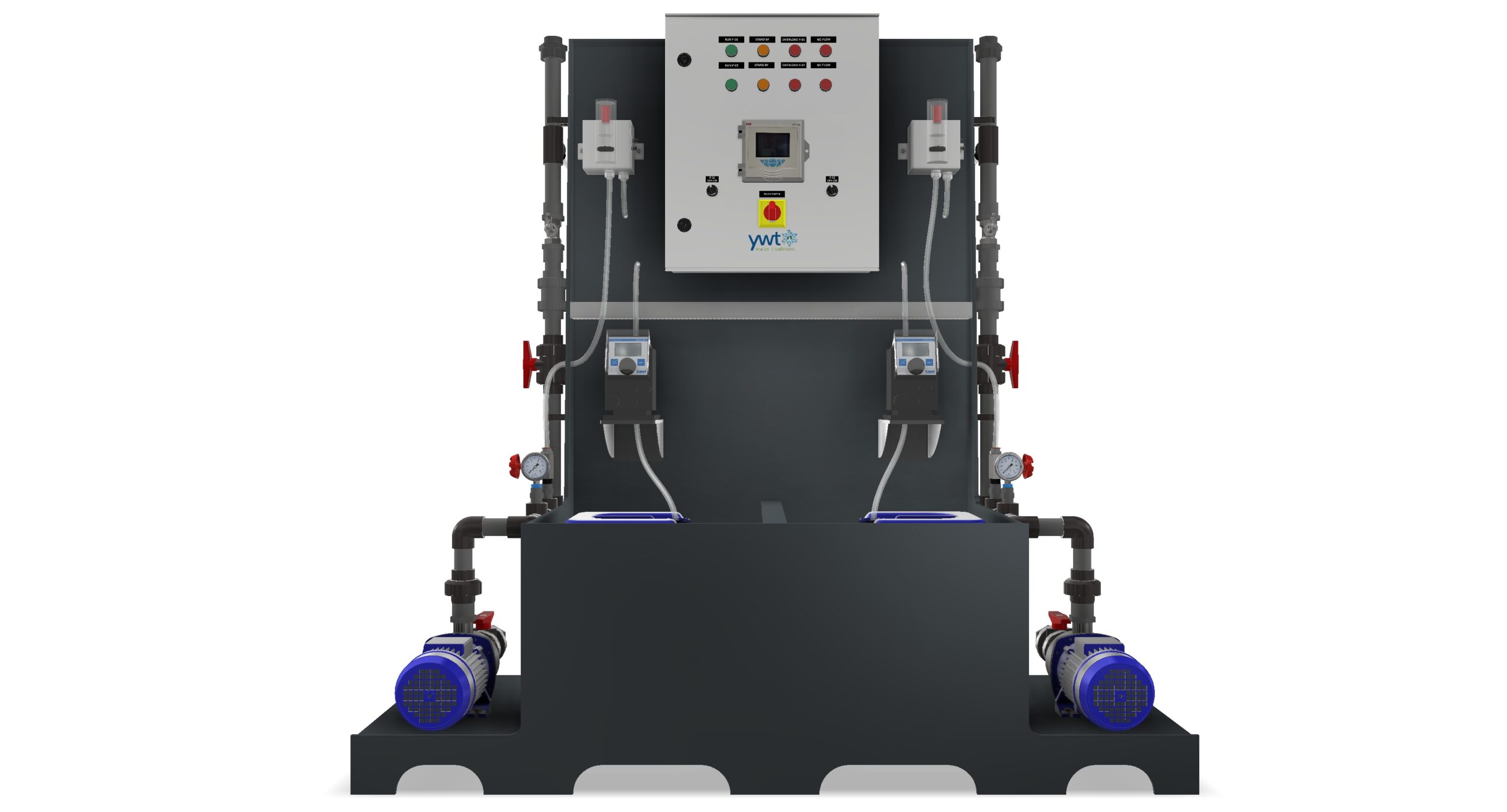

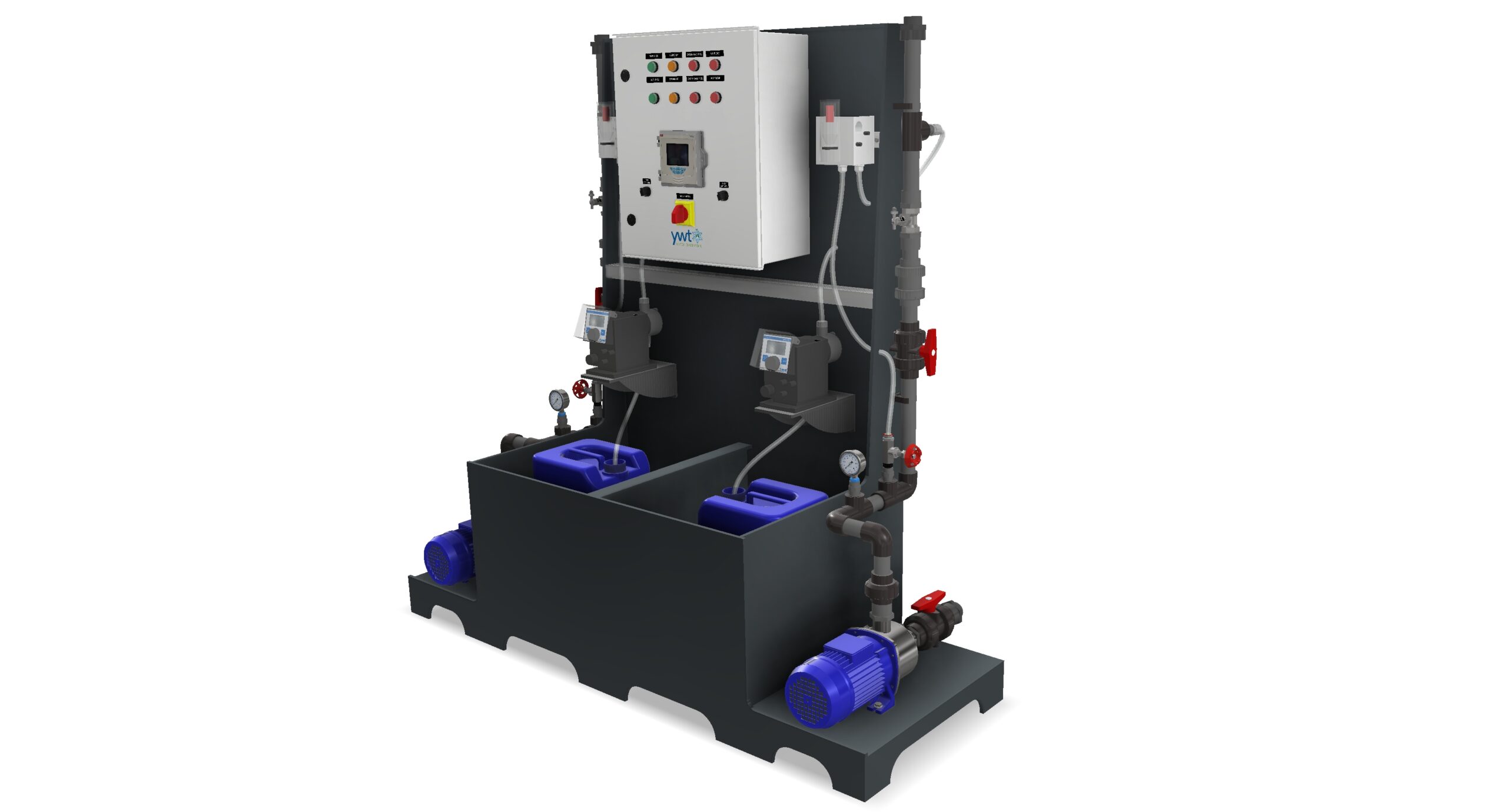

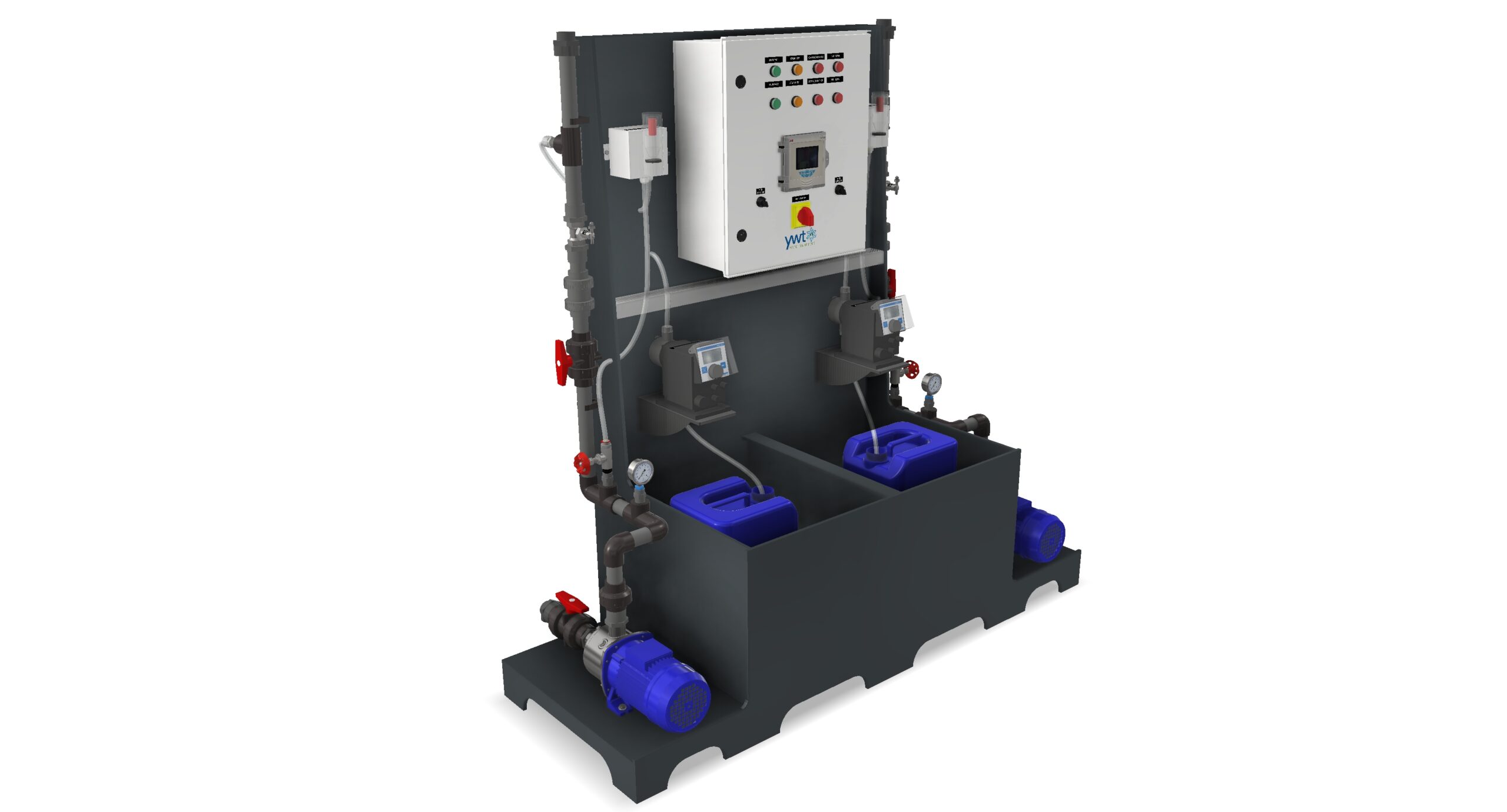

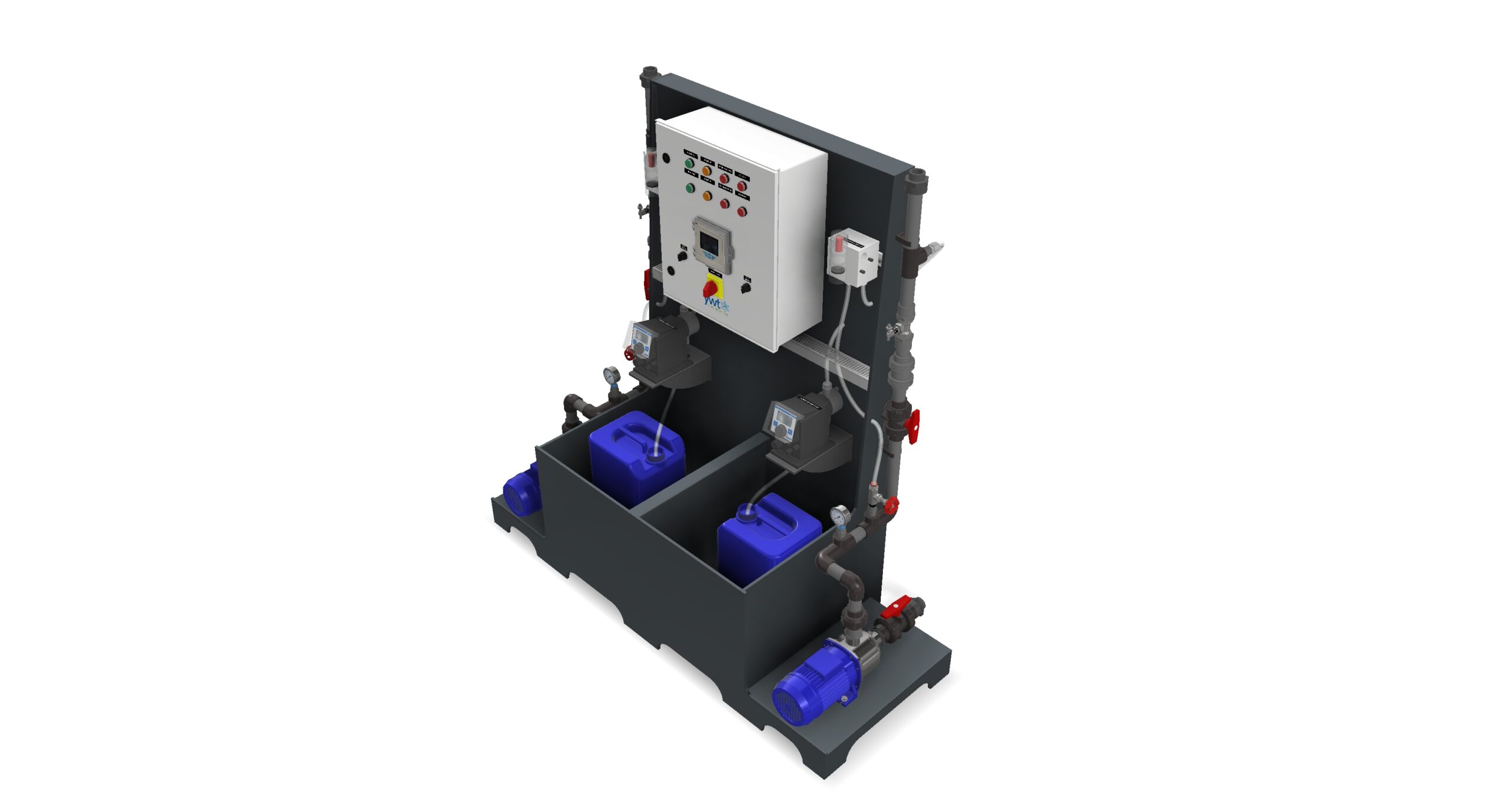

Chlorination Model G2 delivers precise and dependable chlorine control for efficient water disinfection. Designed for performance and reliability, this advanced chlorination system helps maintain consistent water quality with simple operation and long-lasting results.
A stable company with extensive experience in the water industry.
We develop high-quality products at competitive prices.
Delivering advanced solutions backed by knowledge, innovation, and industry expertise.
EQUIPMENT
• EBARA high flow pumpMATRIX 3T/1.3 2 pcs
• Grundfos BWT digital diaphragm dosing pump 2 set
• Water quality analyzer cell De Nora KC4 2 pcs
• ABB conductivity controller 1 set (pH option)
• Paddle flow switch 2 pcs
• Double dosing skid with integrated spill containment bund, chemical-resistant polypropylene skid base 1 pcs
• Chemical dosing tank 25L 2 set
PHYSICAL PARAMETERS:
Approximate dimensions (bare) 1.72 ×1.7 ×0.68 m
Approximate dimensions (crated) 2.0 ×2.0 ×0.85 m
(Width ×Depth ×Height, ±5%)
Approximate weight (bare) 125 kg
Approximate weight (crated) 175 kg
Maximum Power Consumption 2.2 kW
CONNECTION PORT SIZES:
Inlet water G 1½″
Analyzer port G ½″
Dosing port G ½″
Outlet water 1½″
